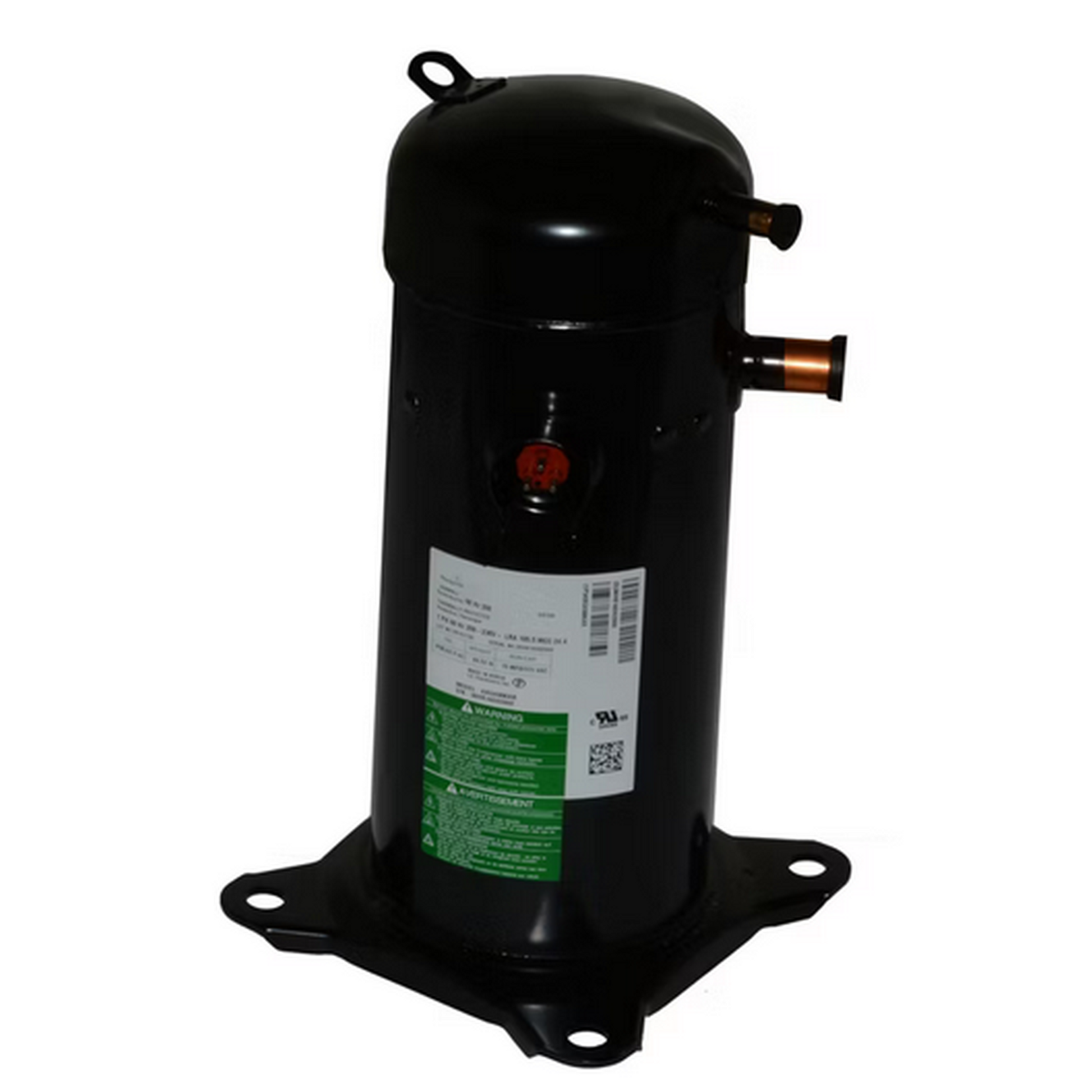

LG 38000 BTU Scroll Compressor
LG 38000 BTU Scroll Compressor
Regular price
$500.00 USD
Regular price
Sale price
$500.00 USD
Unit price
/
per
NEW
Model#: ABG038KAB
Length 10.5 inches (in)
Width 11 inches (in)
Height 22 inches (in)
Weight 74 pounds (lbs)
BTU Output 38,100
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Cycle/Hertz 60 Hz
Discharge Connection Size OD 1/2"
Evaporating Temperature 45°F (7.22°C), 10°C
Locked Rotor Amps (LRA) 105.5
Motor HP 3 1/5
Mounting Dimensions 7.5" x 7.5"
Oil Charge Initial (oz.) 43.3 Oz.
Oil Type Polyolester (POE)
Phase Single
Rated Load Amps (RLA) 15.6
Refrigerant R-410A
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 7/8"
UOM EA
UPC 822529652016
Voltage 208-230 VAC
Model#: ABG038KAB
Length 10.5 inches (in)
Width 11 inches (in)
Height 22 inches (in)
Weight 74 pounds (lbs)
BTU Output 38,100
Compressor Housing Hermetic
Compressor Type Scroll
Condensing Temperature 130°F (54.44°C)
Cycle/Hertz 60 Hz
Discharge Connection Size OD 1/2"
Evaporating Temperature 45°F (7.22°C), 10°C
Locked Rotor Amps (LRA) 105.5
Motor HP 3 1/5
Mounting Dimensions 7.5" x 7.5"
Oil Charge Initial (oz.) 43.3 Oz.
Oil Type Polyolester (POE)
Phase Single
Rated Load Amps (RLA) 15.6
Refrigerant R-410A
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 7/8"
UOM EA
UPC 822529652016
Voltage 208-230 VAC
All dimensions are H x W x D unless specifically noted otherwise. You will need to select a pickup location once item is added to cart prior to proceeding to checkout. If you are purchasing items from multiple locations, please allow 7-10 business days for the inventory to be transferred, although it may be sooner. You will receive a confirmation email when the item(s) is ready for pickup.
