The 38" x 60" Watertight Shower Curb Kit provides a lightweight foundation engineered for custom tiled showers. An EPS foam base slopes five degrees toward a centered four-inch drain, directing water efficiently while supporting ceramic or stone finishes.

• Reliable Drainage Hardware: A 304 stainless steel gravity grate pairs with a corrosion-resistant PVC flange to stop reverse flow and trap debris before reaching your plumbing.
• Custom Waterproof Seals: Two field-cuttable XPS foam curbs pair with a 3.3' x 32.8' HDPE membrane featuring a textured backing for instant mortar adhesion.
• Professional Installation Tool: A rigid square-toothed stainless steel trowel feathers unmodified thin-set evenly, locking the foam base to your floor without sagging.

This all-in-one assembly combines structural stability, exact gradient engineering, and professional sealing components to eliminate remodel guesswork. Stop leaks before they start—purchase this shower curb kit today to streamline your tiling project.

NEW in box

Crafted with EPS foam board, the 38in x 60in shower tray offers a lightweight yet sturdy base;It features a 5 degrees slope for efficient drainage, ensuring no water buildup;The central drain hole is 4" in diameter and fits seamlessly under tiles.

The kit includes a corrosion-resistant 304 stainless steel grate and a PVC flange;These components guarantee smooth water flow while resisting wear over time.

The two XPS foam curbs are designed to stop water overflow effectively;They are easy to cut and customize, making them suitable for various bathroom layouts.

PREMIUM SHOWER TRAY - This shower curb kit provides you a shower tray made of EPS high-pressure foam board; Overall size: 38 in x 60 in (965.2 mm x 1524 mm); The drainage hole is set in the middle with a 4 in (10 cm) diameter for effective water running; The shower tray is equipped with a gray water-impermeable membrane with fluffy texture on the surface, convenient for mortar brushing; The tray forms a 5 degrees inclination from four sides to the middle, which is convenient for drainage;

DRAINAGE ACCESSORIES - The shower curb overlay includes a durable PVC flange and auxiliary drainage device (fit for 2 inch pipes) to ensure smooth water flowing; With a gravity automatic seal grate, pipes won't be blocked; In addition, we offer 2 shower curbs with the size of 38 in x 4.5 in x 6 in (965.2 mm x 114.3 mm x 152.4 mm); Adopting XPS plastic extruded board, 2 shower curbs are easy to cut and can be adjusted according to the actual needs of the length;

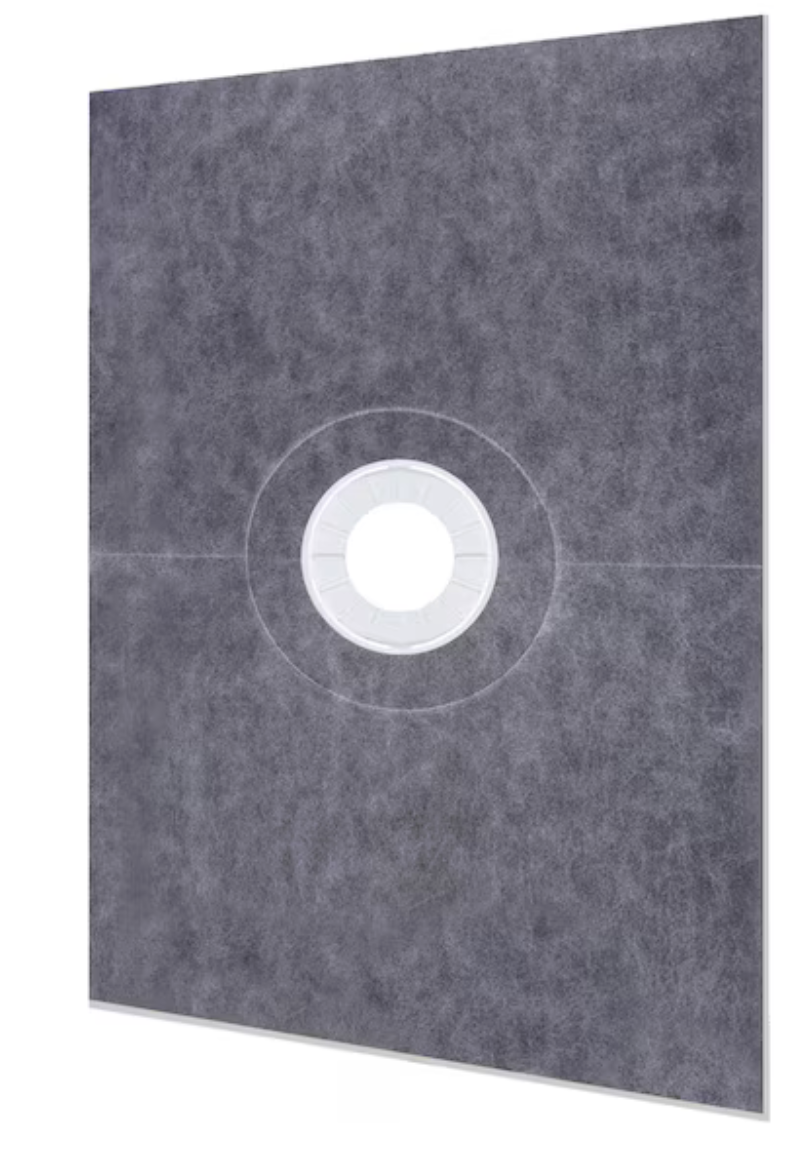

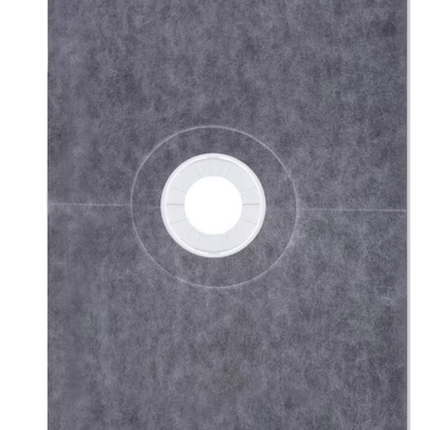

WATER IMPERMEABLE - A roll of HDPE material water-impermeable membrane are included in this shower base kit; Roll size: 3.3 ft x 32.8 ft(1 m x 10 m); You are allowed to choose the membrane for different areas of the wall or floor.

STAINLESS STEEL TROWEL - An excellent square-toothed stainless steel trowel for mortar brushing is included; This trowel is solid and non-deformed; The trowel blade features square-serrated to keep the mortar on the surface uneven, enhancing the adhesion between the membrane and the wall or floor;

EFFORTLESS INSTALLATION - Install a shower bed kit is not difficult and won't cost you a long time; It contains all the water-impermeable components, including the shower tray, flange, stainless steel drain, membrane, and shower curb, required to create a non-maintenance, watertight shower assembly; You should use an unmodified thin set to install it; This product is a good choice for your water-impermeable bathroom;

Specification: Model: VV-LYDZ-PVC3860Z; Material of the Flange: PVC; Size of the Shower Tray (W x L): 38 in x 60 in/ 965.2 mm x 1524 mm; Size of the Shower Curb (L x W x H): 38 in x 4.5 in x 6 in/ 965.2 mm x 114.3 mm x 152.4 mm; Material of the Grate: 304 Stainless Steel; Size of the Grate (W x L): 4 in x 4 in/ 10 cm x 10 cm; Size of the Membrane: 121.3 sq ft/ 11.3 m²
